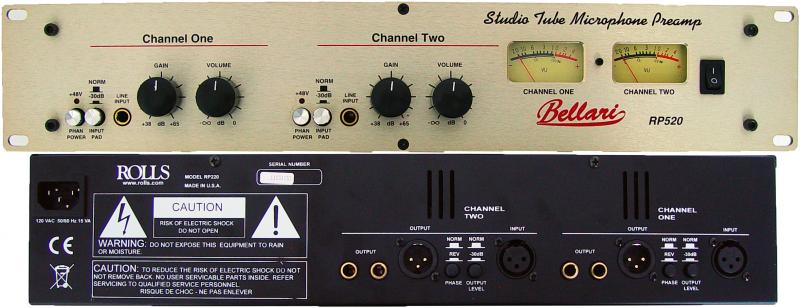

RP520 Studio Tube Mic Preamp

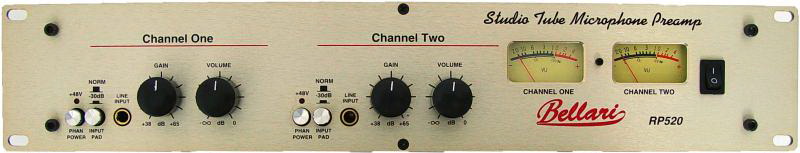

Great tube mic preamp, identical to the RP220 except for the analog meters, and gold face plate. It has been included on several album credits and is present in most major studios in LA, Nashville, and New York.

It has the smooth yet punchy characteristics that drive vocal tracks to the front, warm up any digital mix, and yields up to 6 dB more gain before feedback for the live user.

The pristine sound is achieved by running the tubes at a high 250 volt plate voltage.

INPUT
Standard XLR type balanced inputs, pin 2 is hot, for Mic or line-level audio sources. (e.g., instrument, microphone or mixer).

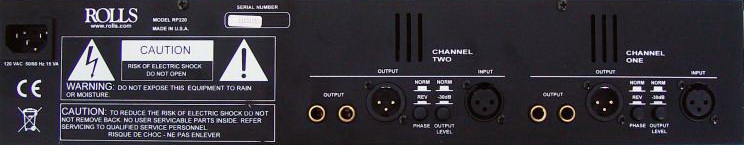

OUTPUT JACKS
1/4" phone connectors or balanced XLRs used for connection to your line
inputs on your load (e.g., DAT, Amp. or mixer).

30 dB Pad
This switch changes the level of the Output XLR jack only. When in, it
attenuates the output level by 30 dB.

PHASE REVERSE
When pressed in, reverses the phase of the output signal 180 degrees
from the input signal.

Frequency Response     20Hz - 40kHz, +/- 3dB Mic/Line
                                      5Hz - 40kHz inst.
Input Impedance           600 ohm balanced XLR
                                      1M ohm Instrument                                                                     THD                                0.1% typical
S\N Ratio                       >107 dB
Max Gain                        48dB Inst or line, 70dB XLR
Indicators                       2 - LEDs (Phantom Power)
                                       2 - Backlit Analog Meters
Input/Output jacks        XLR balanced and 1/4"
Dimensions                     3.5" X 6" X 19" (89mm X 162mm X 482mm)
Power                            120VAC (230VAC) 15VA
