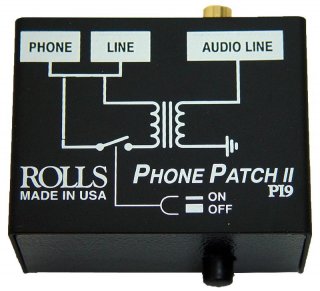

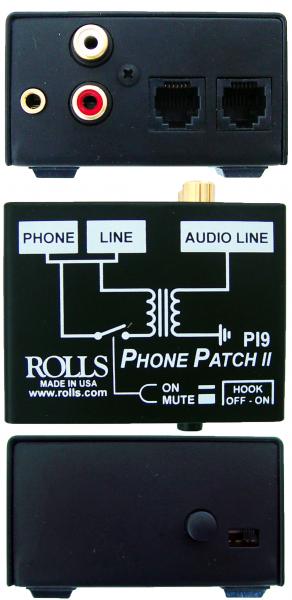

Rolls Telephone Interface

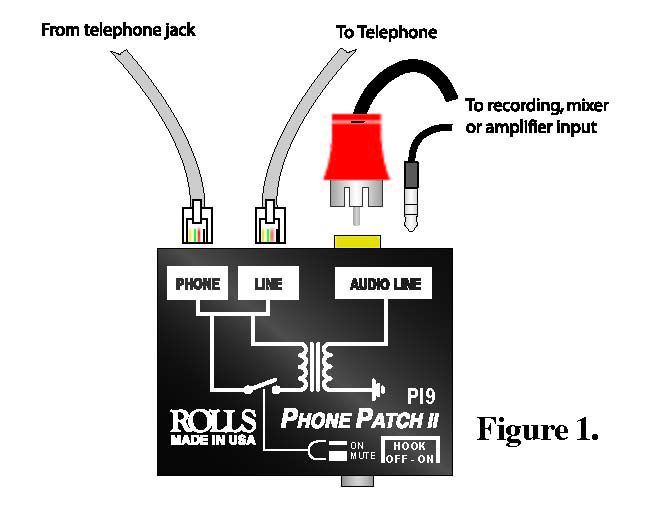

The PI9 takes a signal from a standard telephone jack and,via transformer isolation, connects to a pair of RCA jacks, or a stereo 1/8" (3.5mm) jack. The isolation keeps the output signal separate from the telephone line, and will not keep the line open unless the internal jumper is moved.

Applications for the PI9 include broadcast, conference rooms, phone training, or wherever a phone conversation needs to be recorded or heard over a PA system.

***The PI9 does not work with phone systems only a POTS line (plain old telephone system). If you try to use this with a digital or hybrids system we will not pay your counseling bills.

Feature

• 2 parallel RJ11 telephone jacks
• Transformer isolation
• Dual RCA, and an 1/8” (3.5mm) output
• Passive - requires no power
• Does not work with telephone systems or VOIP
• Requires prior knowledge of telephone interfaces
• Very limited support for this product
