DB9000-RX

Codec โดย DEVA

ชื่อ
จำนวน

DB9000-RX Professional IP Audio Decoder with Stereo & RDS Encoder Module



FEATURES:

  • High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer 3 Codecs
  • 32 kHz, 44.1, 48 and 96 kHz sample rates support
  • Support of all standard bitrates and VBR as well
  • Shoutcast / Icecast compatible TCP/IP stream client
  • Auto switching to another server in the event of a connection loss
  • 4 LEDs and Phones output for quick diagnostics
  • IP address pronunciation at startup (through the headphones)
  • Full Control and easy setup with any web browser
  • Entirely Digitally Generated Composite MPX Stereo Signal
  • Digital stereo encoder with pre-emphasis, AGC and equalizer
  • Fully Dynamic RDS encoder
  • UPnP for easy discovery in Local Networks
  • Audio Backup on connection or audio loss
  • SD Card for Audio Backup Storage
  • Ethernet to RS-232 Redirector
  • MPX Limiter

DB9000-RX is an integrated client for IP transmitted digital audio signal. This is a device designed to support HE-AAC and MPEG-1 Layer 3 compressed audio streams and PCM uncompressed stream for audio transmission without quality loss. Decoding takes place in real time by a powerful DSP processor and the output signal is both in digital and analog form.

DB9000-RX have built-in backup player for continuous audio play in case of signal loss or connection with server. With the optional Stereo and RDS Encoders, DB9000-RX becomes complete tool for audio rebroadcast. The Stereo Encoder has its own DSP processor which allows generation of fully digital composite MPX signal with high stereo quality. With its RS-232 port, DB9000 could be transformed into Ethernet to RS-232 Redirector, allowing to control any other existing equipment over Internet.

DB9000-RX allows you to quickly and painlessly integrate existing audio systems to the Internet.Developed with the thought of easiness of use, DB9000-RX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.



TYPICAL APPLICATIONS:

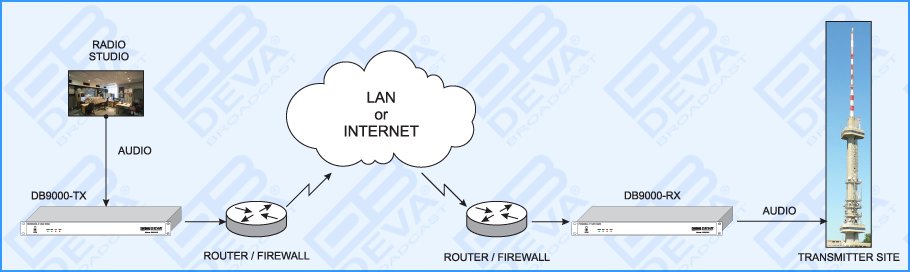

Audio Transmission over IP-based networks (DB9000-TX is required at the opposite site)

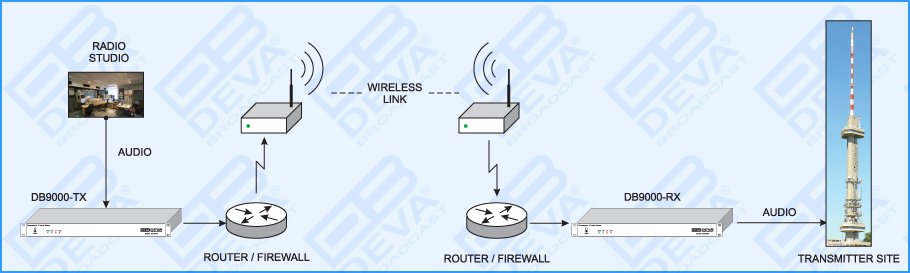

Audio Transmission over IP-based Point-to-Point Wireless Link



Multicast Audio Transmission over IP-based networks
